Dental Chair Packs

Dental Clinic UVC-Dental Back Pack

Specifically designed and manufactured to protect dentists and employees from potential virus-carrying patients, cross-contamination via aerosol, and water spray in the operating room. The device contains two easy-to-position high-vacuum suction hoses that create a negative pressure space between patient and medical professional. As such, any pathogen-containing air is sucked into a tank containing an individually-tested HEPA filter with water, humidity-resistant material, and a high-power UVC source to destroy any pathogen collection on the HEPA filter inlet, thus preventing any biofilm formation in the tank, making periodic HEPA filter replacement procedures much safer.

Intended Use

Dental surgery room negative air pressure and HEPA filter, plus UVC light to prevent cross contamination between patient, dentist, and hygienist.
99.997% efficient medical, individually-certified HEPA filter.
Water droplet, aerosol-resistant filter, fan, and electricals.
254nm UVC to eliminate pathogen build-up on the filter inlet surface.
Natural virus destruction without any resistance build-up.
Safe replacement of HEPA filter that is decontaminated with UVC.

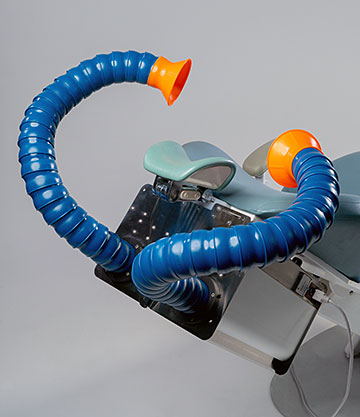

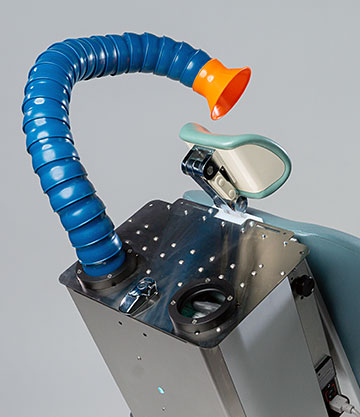

Two easy-to-clean, 2.9" diameter, PVC, retractable air vacuum tubes.

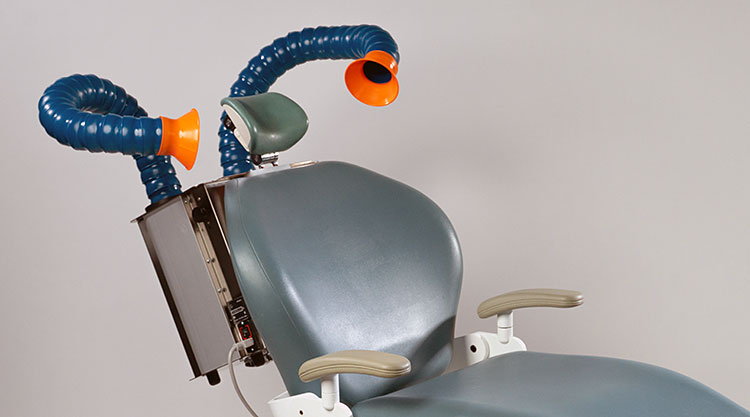

Secures easily (in less than a minute) onto the back of a dental chair using the headrest mount and base strap.
Easy to retrofit any existing dental chair.
Reduce mercury vapour in air during amalgam removal.

Technical Specifications

Construction: Solid stainless steel
Dimensions: 14” x 9" x 14" high
Weight: 32 lbs.
Operation: On/Off button for fan and UVC light
Fan performance: Adjustable up to 980 cfm
Filter air flow rate: 280 cfm
Noise level: Low level, under 62 dB
Fan motor lifespan: 30,000 hrs, brushless, speed controlled
Frequency of use: As often as desired
Light intensity: 9000 mW/sqcm on the filter surface
Lamp lifespan: 16,000 hours
HEPA filter lifespan: 1,000 hrs plus
Light source: Hard quartz, non-ozone type
Number of lamps: 1 lamp
Power input: 120 VAC, 60 Hz or 220 VAC, 50 Hz
Amperage: 2.5 Amps @ 120 VAC or 1.25 Amps at 220 VAC
Power inlet: EMC filtration (hospital grade)
Power cord: Standard, 15 Amp @120 VAC IEC grounded with fuses, 10 feet long or 220 power plugs for Europe, Middle East, Australia, UK (order specifically)
Safety devices: Entry fuses, on/off switch

Caution

This is a device to reduce the pathogen count in air only. This is not a guarantee to prevent any infection caused by airborne pathogens.

Regulatory approvals

EPA Registered, Conforms to CSA/NRTL/ANSI, UL1431 standards manufactured with ISO 13485-2016 quality controls.

Note: This is not a medical device.
